Xhorse VVDI Key Tool Max Pro

The Xhorse VVDI Key Tool Max Pro is a professional all-in-one key programming and vehicle service device that combines the functions of the VVDI Key Tool Max and Mini OBD Tool. Designed for automotive locksmiths and technicians, it supports transponder generation and cloning, remote programming, immobilizer functions, vehicle maintenance, RF testing, and Xhorse key-cutting machine control.

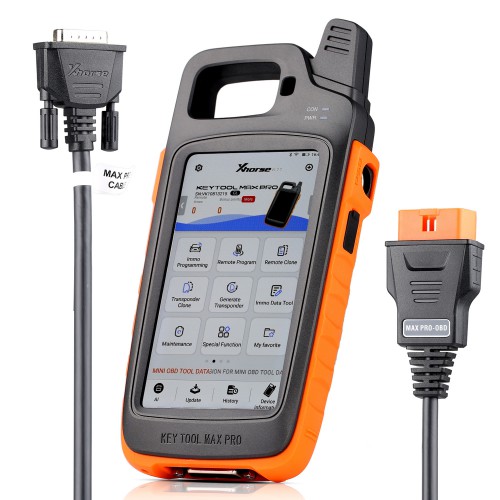

With an integrated OBD module and CAN FD support, the Key Tool Max Pro connects directly to a vehicle through the supplied OBD cable. This streamlined design eliminates the need for a separate Mini OBD Tool and allows the unit to receive power through the vehicle’s OBD port.

Key Features

• Built-in OBD module: Perform supported immobilizer programming, vehicle diagnostics, throttle matching, TPMS functions, and service-light resets without a separate Mini OBD Tool.
• Integrated CAN FD support: Provides programming support for selected newer CAN FD vehicles, including compatible Cadillac, Buick, and Chevrolet models.
• Remote and smart-key generation: Generate compatible wired remotes, wireless remotes, and smart keys using Xhorse universal remote products.
• Transponder programming: Generate and clone supported transponders, including applications using Xhorse Super Chips.
• Remote renewal: Renew compatible used remotes and smart keys with the appropriate adapters.
• RF signal detection: Detect remote-control frequency and analyze signals for programming and troubleshooting.
• Battery testing: Measure remote-battery voltage and detect leakage current using the supplied test connections.
• Access-card functions: Recognize and clone supported access cards.
• Garage-remote functions: Generate and clone supported fixed-code garage remotes.
• Key-cutting machine control: Connect to and operate compatible Xhorse Condor and Dolphin key-cutting machines.
• Wireless connectivity: Built-in Wi-Fi and Bluetooth provide convenient communication and software access.
• Online updates: Vehicle and key coverage can expand through Xhorse software updates.

Professional Key and Remote Functions

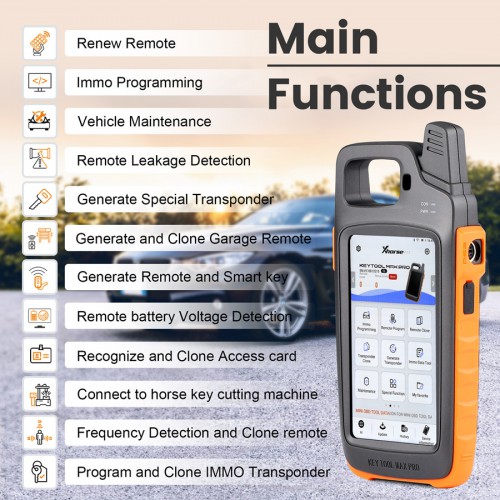

The VVDI Key Tool Max Pro provides the essential functions required for everyday automotive locksmith work:

1. Immobilizer programming for supported vehicles.
2. Remote and smart-key generation.
3. Transponder generation and cloning.
4. Special transponder generation.
5. Remote-control renewal.
6. Frequency and signal detection.
7. Fixed-code remote cloning.
8. Access-card recognition and cloning.
9. Vehicle maintenance and service resets.
10. Xhorse key-cutting machine operation.

Integrated OBD and CAN FD Capability

Unlike the original Key Tool Max, the Max Pro has OBD functionality built in. Connect it directly to a supported vehicle to perform available key-learning, immobilizer, diagnostic, TPMS, throttle, and maintenance functions.

The integrated CAN FD module extends compatibility to selected modern vehicles using high-speed CAN FD communication. Supported applications vary by vehicle model, year, region, system type, and current software version.

Toyota and BMW Support

The device supports selected Toyota key-programming applications, including compatible 4D and 8A systems. Toyota H all-keys-lost functions may require a separate 8A AKL adapter.

BMW support includes selected CAS3, CAS3+, and earlier systems, subject to the vehicle configuration and software coverage. Always check the latest Xhorse application list before purchasing for a specific vehicle.

Some Toyota variants, including certain 8A-A9 and 4A/8A-AA applications, may not be supported. Coverage can change through software updates.

Remote Battery Testing

The integrated battery-testing module helps diagnose remote-control faults by measuring:

This function is intended for testing compatible remote controls and remote batteries. Follow the operating instructions carefully and do not use the leakage test on unsupported electronic products.

Hardware Specifications

Supported Languages

The application supports multiple interface languages, including English, German, Spanish, French, Italian, Portuguese, Polish, Russian, Turkish, Ukrainian, Vietnamese, Korean, Thai, Persian, Hebrew, Hindi, and Indonesian. Language availability may vary by software version, and some vehicle databases may remain in English.

Key Tool Max vs. Key Tool Max Pro

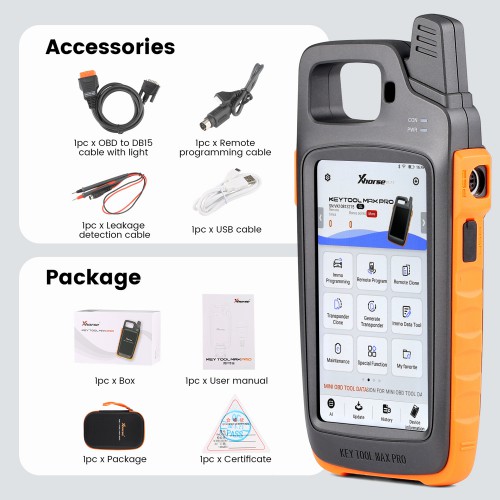

Package Contents

• Xhorse VVDI Key Tool Max Pro
• OBD cable
• USB charging/data cable
• Remote battery-test cables
• Power adapter
• User documentation
• Protective storage case or packaging, depending on the selected kit

Check the product images and package selection before ordering.

Important Compatibility Information

Vehicle coverage depends on the make, model, production year, immobilizer system, key type, region, adapters, account status, and installed software version. Some functions require additional accessories, tokens, points, online calculations, or an active internet connection.

Confirm compatibility using the latest Xhorse vehicle coverage information before purchasing for a specific application. Use immobilizer and key-programming functions only on vehicles you own or are authorized to service.
